CVS-10 - Combination Voice eXpander
This voice expander was produced for obtaining additional organ (combination of flutes)
sounds. It has a very nice look, big LCD and all the abilities of the HX WM tone generator.
It can be attached to any instrument via MIDI(I think transmitting to its MIDI in is enough),
and connecting its "main out" jacks (big PL connectors) through an emplifire to an
output source.

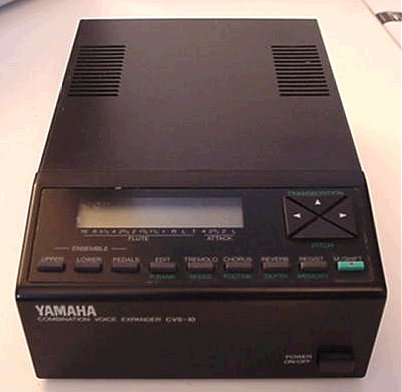

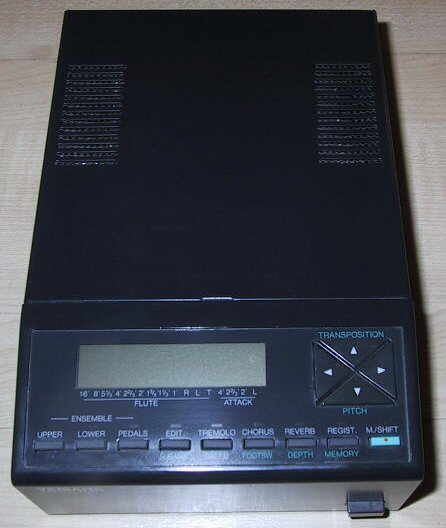

CVS-10 Pictures: (downloaded from the internet)
CVS-10 Brochure:
Download the German brochure
CVS-10 spesifications table:
| Tone Generator | WM(Wave Memory) and FM(Freq. Modulation); Upper:8-note polyphonic; lower 8-note polyphonic; pedals: monophonic |
| Voices | Upper/Lower(16 presets,16 user voices) Flute:16',8',5-1/3',4',2-2/3',2',1-3/5',1-1/3',1'; Attack:4',2-2/3',2';Pedals(8 Presets, * User Voices) Flute:16',8',4' |
| Ensamble | Upper,Lower,Pedals |
| Effects/Control | Volume: Upper/Lower/Pedals; Tremolo/Chorus: On/Off (for Upper/Lower), Speed, Footsw; Reverb On/Off, Depth; Pitch; Transposition. |
| Registration Memory | 16 Memories x 4 Banks; 16 Preset Combinations |
| Other Controls | M./Shift, Power Switch, Stereo/Mono Switch, Impedance Switch (Hi: Electone; Low:Home Stereo) |
| Indicators | LCD Display, LED Lamps: Upper, Lower, Pedals, Edit, Tremolo, Chorus, Reverb, Regist., M./Shift |
| Input/Output Jacks | MIDI-1 (In,Out;for electone),MIDI-2 (In,Out), Aux. In(L,R), Line Out (L,R), DC In. |
| Accessories | MIDI Cable (1.5m x 2), Audio Cable (Stereo;1.4m), 1-unit Bracket BRT-3 (for HX,HS and HE Electones; optional), 2-unit Bracket BRT-3D (for HX, HS and HE Electones; optional), Power Adapter PA-W10 (DC In 10V; 700mA - A; not included) |
| Dimentions(W x D x H) | 135 x 200 x 63.5mm (5.3" x 7.9" x 2.5") |
| Weight | 1.1kg (2.4 lbs.) |
For more information please refer to the Yamaha manual library. (Yamaha Manual library)
|
|
|
|
Sincerely yours James Cohen Israel.
|
